Description

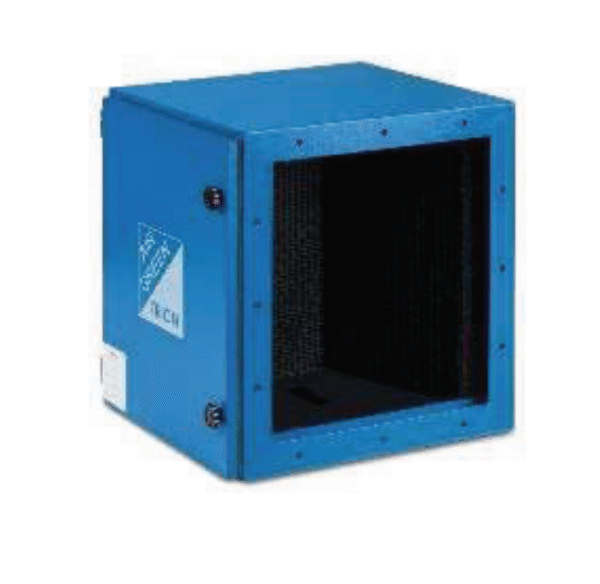

The V-Carbon T-3003 by TRION is a premium activated carbon filter engineered for commercial kitchen ventilation systems. Featuring a U-shaped structure and packed with high-quality activated carbon particles, it ensures excellent adsorption of oil fume odors. The modular construction allows quick integration with kitchen air cleaners, making it suitable for diverse kitchen configurations. With a large filtration area and low pressure drop, the V-Carbon T-3003 provides high airflow capacity and durable performance, meeting the rigorous demands of professional kitchens.

Key Features

Feature Specification
Model V-Carbon T-3003
Design U-shaped modular structure
Filter Media Activated carbon particles
Filter Area 1.2 sqm
Dimensions (DxWxH) 457 x 1442 x 534 mm
Flange Size 1420 x 534 mm
Airflow Capacity 12,000 CMH (7062 CFM)
Weight 82 kg
Pressure Drop ≤ 140 Pa
Applicable Product Kitchen air cleaner systems
Dimension A 1420 mm
Dimension B 1012 mm
Dimension C 1440 mm
Dimension D 203.8 mm
Dimension E 1318 mm
Dimension F 1369 mm
Thru Hole “G” Quantity: 40, Hole Size: 10 mm
Flange Hole Pattern Distributed on 51 mm flange centerline

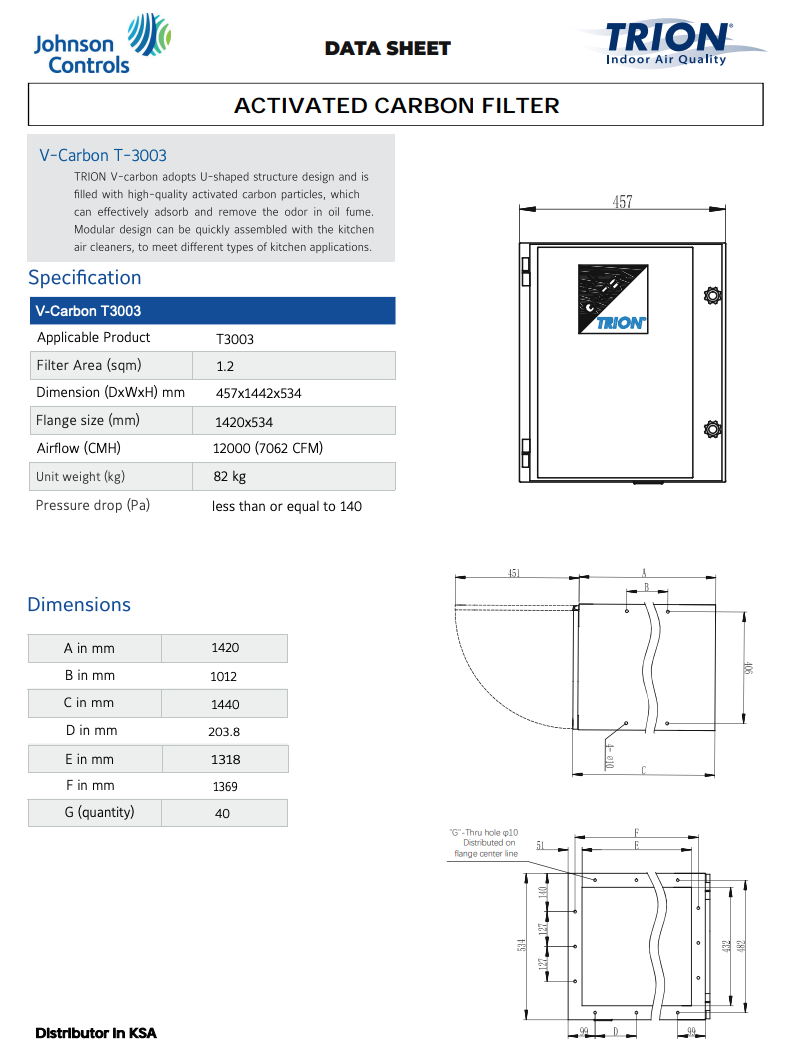

Data Sheet

Download the data sheet.
